WAC Lighting Square Recessed Lighting
WAC Lighting HR-D416 Square Directional Spot Trim
WAC Lighting HR-D416 Square Directional Spot Trim on Amazon
4 Inch Premium Low Voltage Downlight HR-D416 Directional Spot - 30° Adjustment From Vertical
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Periscope style recessed adjustable trim. For use with HR-8400 series low voltage housings.
MR16 (see housing for maximum wattage)

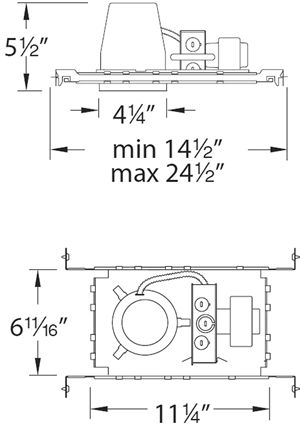

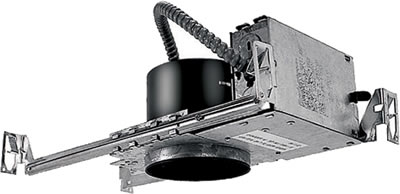

Housing: MR16, 50W max: HR-8402E, HR-8402H,HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
MR16, 75W max: HR-8402HL
| HR-D416-BK | Recessed Low Voltage Trim Adjust Spot |
| HR-D416-BN | Recessed Low Voltage Trim Adjust Spot |
| HR-D416-WT | Recessed Low Voltage Trim Adjust Spot |
• Directional spot, 30° adjustment from vertical recessed downlight
• Center lamp holder allows lamp to be tilted up to 30° from vertical
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W or 75W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Available in Black (BK), Brushed Nickel (BN), and White (WT).
Standards: UL & CUL Listed, Suitable for damp locations
WAC Lighting HR-D425 Directional Spot Trim
WAC Lighting HR-D425 Directional Spot Trim on Amazon
4 Inch Premium Low Voltage Downlight HR-D425 Directional Spot - 80° Adjustment From Vertical
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Periscope style recessed adjustable trim.
For use with HR-8400 series low voltage housings.
MR16 (see housing for maximum wattage)
Housing: MR16, 50W max: HR-8402E, HR-8402H,HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
MR16, 75W max: HR-8402HL
| HR-D425-BK | Recessed Low Voltage Trim Adjust Spot |
| HR-D425-BN | Recessed Low Voltage Trim Adjust Spot |
| HR-D425-WT | Recessed Low Voltage Trim Adjust Spot |
• Directional spot, 80° adjustment from vertical recessed downlight
• Center lamp holder allows lamp to be tilted up to 80° from vertical
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips firmly hold trim to housing.
Trim is furnished with special socket and ceramic terminal block,
to be used in place of the downlight housing socket.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W or 75W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Available in Black (BK), Brushed Nickel (BN), and White (WT).
Standards: UL & CUL Listed, Suitable for damp locations
WAC Lighting HR-D411 Basic Baffle
WAC Lighting HR-D411 Basic Baffle Trim on Amazon
4 Inch Premium Low Voltage Downlight HR-D411 Step Baffle - 35° Adjustment From Vertical MR16 (see housing for maximum wattage)
Housing: MR16, 50W max: HR-8402E, HR-8402H,HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
MR16, 75W max: HR-8402HL
| HR-D411-WT/WT | Recessed Low Voltage Trim Basic Baffle |
• Step baffle, 35° adjustment from vertical recessed downlight
• Center lamp holder allows lamp to be tilted up to 35° from vertical
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W or 75W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Available in White baffle with White trim (WT/WT).
Standards: UL & CUL Listed, Suitable for damp locations
WAC Lighting HR-D412 Open Specular Trim
WAC Lighting HR-D412 Open Specular Trim on Amazon
4 Inch Low Voltage Downlights HR-8412 Open Reflector - 35° Adjustment From Vertical
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available.
Recessed adjustable trim with interior reflector.
For use with HR-8400 series low voltage housings.
MR16 (see housing for maximum wattage)
Housing: MR16, 50W max: HR-8402E, HR-8402H,HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
MR16, 75W max: HR-8402HL
| HR-D412-SC/BN | Recessed Low Voltage Trim Open Reflector |
| HR-D412-SC/WT | Recessed Low Voltage Trim Open Reflector |
• 35° adjustment from vertical recessed alternative
to surface mounted track lights
• Center lamp holder allows lamp to be tilted up to 35° from vertical
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable stamped metal construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W or 75W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Reflector is available in Clear (CL). Trim is available in Brushed
Nickel (BN) or White (WT).
Standards: UL & CUL Listed, Suitable for damp locations

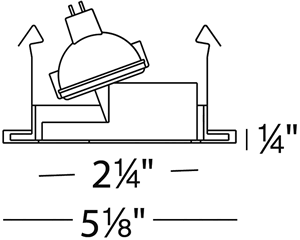

WAC Lighting HR-D413 Slot Trim with Black Interior
WAC Lighting HR-D413 Slot Trim on Amazon
4 Inch Premium Low Voltage Downlight HR-D413 Slotted Trim - 35° Adjust From Vertical
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Slotted aperture trim with black interior. Used for controlled
highlighting or drama from a small aperture. For use with HR-8400
series low voltage housings.
MR16 (see housing for maximum wattage)
Housing: MR16, 50W max: HR-8402E, HR-8402H,HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
MR16, 75W max: HR-8402HL
| HR-D413-WT | Recessed Low Voltage Trim Adjust Slot |
• Slot trim, 35° adjustment from vertical recessed downlight
• Center lamp holder allows lamp to be tilted up to 35° from vertical
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W or 75W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Available in White (WT).
Standards: UL & CUL Listed, Suitable for damp locations

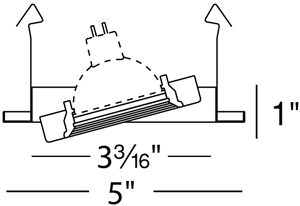

WAC Lighting HR-D417 Gimbal Ring Trim
WAC Lighting HR-D417 Gimbal Ring Trim on Amazon
4 Inch Low Voltage Downlights HR-8417 Gimbal Ring - 25° Adjustment From Vertical
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available.
Adjustable gimbal ring trim with dual pin axis.
For use with HR-8400 series low voltage housings.
MR16 (see housing for maximum wattage)
Housing: MR16, 50W max: HR-8402E, HR-8402H,HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
MR16, 75W max: HR-8402HL
| HR-D417-BN | Recessed Low Voltage Trim Gimbal Ring |
| HR-D417-WT | Recessed Low Voltage Trim Gimbal Ring |
• Gimbal ring, 25° adjustment from vertical recessed downlight
• Center lamp holder allows lamp to be tilted up to 25° from vertical
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable stamped metal construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W or 75W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Available in Brushed Nickel (BN) and White (WT).
Standards: UL & CUL Listed, Suitable for damp locations
WAC Lighting HR-D418 Drop Dish Dome Trim for Showers
WAC Lighting HR-D418 Drop Dish Dome Shower Trim on Amazon
4 Inch Premium Low Voltage Downlight HR-D418 Shower Light - Drop Dish Glass Dome - UL Listed for wet locations
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Wet location listed glass dome trim. Typical applications include
bathrooms, sauna's, workrooms and patios. For use with HR-8400 series
low voltage housings.
MR16 (see housing for maximum wattage)
Housing: MR16, 50W max: HR-8402E, HR-8402H,HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
Finish-Trim: CB-Copper Bronze, WT-White
| HR-D418-CB | 4" Trim Drop Dish Glass Dome For Showers |
| HR-D418-WT | Recessed Low Voltage Trim Drop Dish Shower |
• Shower light with drop dish glass dome recessed downlight
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Available in Copper Bronze (CB) or White (WT).
Standards: UL & CUL Listed, Suitable for damp locations
WAC Lighting HR-D418-S Flat Dish Dome Trim for Showers
WAC Lighting HR-D418-S Flat Dish Dome Shower Trim on Amazon
4 Inch Premium Low Voltage Downlight HR-D418 Shower Light - Drop Dish Glass Dome - UL Listed for wet locations
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Wet location listed drop glass lens trim. Typical applications include
bathrooms, sauna's, workrooms and patios. For use with HR-8400 series
low voltage housings.
MR16 (see housing for maximum wattage)
Housing: MR16, 50W max: HR-8402E, HR-8402H,HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
Finish-Trim: WT-White
| HR-D418-S-WT | 4" Shower Light Flat Glass |
• Shower light with drop glass lens recessed downlight
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Available in White (WT).
Standards: UL & CUL Listed, Suitable for damp locations
WAC Lighting HR-8411 Step Baffle Trim
WAC Lighting HR-8411 Step Baffle Trim on Amazon
4 Inch Low Voltage Downlights HR-8411 Step Baffle - 35° Adjustment From Vertical
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available. Recessed adjustable trim with interior step baffle.
For use with HR-8400 series low voltage housings.
Lamp & Housing: MR16, 50W max HR-8402E, HR-8402H, HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
MR16, 75W max HR-8402HL
MR16 (see housing for maximum wattage)
Finish-Baffle/Trim: BN-Black/Brushed Nickel, CB-Copper Bronze/Copper Bronze, WT-Black/White, WT/WT-White/White
| HR-8411-BN | Recessed Low Voltage Trim Step Baffle |
| HR-8411-CB | Recessed Low Voltage Trim Step Baffle |
| HR-8411-WT | Recessed Low Voltage Trim Step Baffle |
| HR-8411-WT/WT | Recessed Low Voltage Trim Step Baffle |
• Step baffle, 35° adjustment from vertical recessed downlight
• Center lamp holder allows lamp to be tilted up to 35° from vertical
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable stamped metal construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W or 75W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Available in Black baffle with Brushed Nickel trim (BN),
Copper Bronze baffle with Copper Bronze trim(CB), Black baffle with
White trim (WT), or White baffle with White trim (WT/WT).
Standards: UL & CUL Listed, Suitable for damp locations
WAC Lighting HR-8412 Open Reflector 4 Inch Low Voltage Downlights
WAC Lighting HR-8412 Open Reflector Trim on Amazon
4 Inch Low Voltage Downlights HR-8412 Open Reflector - 35° Adjustment From Vertical
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available. Recessed adjustable trim with interior reflector.
For use with HR-8400 series low voltage housings.
Lamp & Housing: MR16, 50W max HR-8402E, HR-8402H, HR-8402HF,HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
MR16, 75W max HR-8402HL
Finish-Reflector/Trim: BN-Clear/Brushed Nickel, CL-Clear/White
MR16 (see housing for maximum wattage)
| HR-8412-BN | Recessed Low Voltage Trim Open Specular |
| HR-8412-CL | Recessed Low Voltage Trim Open Specular |
• 35° adjustment from vertical recessed alternative
to surface mounted track lights
• Center lamp holder allows lamp to be tilted up to 35° from vertical
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable stamped metal construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W or 75W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Reflector is available in Clear (CL). Trim is available in Brushed
Nickel (BN) or White (WT).
Standards: UL & CUL Listed, Suitable for damp locations
WAC Lighting HR-8417 Gimbal Ring Trim
WAC Lighting HR-8417 Gimbal Ring Trim on Amazon
4 Inch Low Voltage Downlights HR-8417 Gimbal Ring - 25° Adjustment From Vertical
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available. Adjustable gimbal ring trim with dual pin axis.
For use with HR-8400 series low voltage housings.
Lamp & Housing: MR16, 50W max HR-8402E, HR-8402H, HR-8402HF, HR-8403H,
HR-8403HF, HR-8401E, HR-8401H, HR-8401HF
MR16, 75W max HR-8402HL
Finish-Trim: BK-Black, BN-Brushed Nickel, CB-Copper Bronze, WT-White
MR16 75W max (see housing for maximum wattage)
| HR-8417-BK | Recessed Low Voltage Trim Gimbal Ring |
| HR-8417-BN | Recessed Low Voltage Trim Gimbal Ring |
| HR-8417-CB | Recessed Low Voltage Trim Gimbal Ring |
| HR-8417-WT | Recessed Low Voltage Trim Gimbal Ring |
• Gimbal ring, 25° adjustment from vertical recessed downlight
• Center lamp holder allows lamp to be tilted up to 25° from vertical
• The supplied clear glass lens can be replaced with one lens accessory
• Handles surfaces up to w" thick
• 5 year WAC Lighting product warranty
Construction: Durable stamped metal construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps (order separately).
50W or 75W maximum, see individual housing for wattage rating.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Available in Black (BK), Brushed Nickel (BN), Copper Bronze
(CB) and White (WT).
Standards: UL & CUL Listed, Suitable for damp locations
WAC Lighting Trim HR-8401E NON-IC Remodel Housing
WAC Lighting HR-8401E NON-IC Remodel Housing on Amazon
4 Inch Premium Low Voltage Downlights HR-8401E Electronic Non-IC, Remodel Housing
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available. 120V input, non-IC remodel housing with electronic transformer.
For use with 4" trims.
Housings & Trims: HR-8401E HR-D411, HR-D412, HR-D413, HR-D416, HR-8411, HR-8412,
HR-D425, HR-D417, HR-D418, HR-D418-S HR-8414, HR-8417
MR16, 50W max
| HR-8401E | Recessed Low Voltage Remodel with Electronic Transformer |
• Cutout: 4 9/16"
• Integral electronic transformer
• May be dimmed with electronic low voltage (ELV) dimmer
• J-Box and transformer accessible through ceiling
• Advanced auto-reset, soft start and short circuit protection features
• Supplied thermal protector protects against over-lamping
• Suitable for 2 × 6 joist installations, for use in "shallow" applications
• 5 year WAC Lighting product warranty
Construction: Housing and transformer case is 20 gauge steel painted black.
Ceramic bi-pin socket, 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Three knockouts and four Romex® style wiring connectors provided for
ease of installation. Suitable for chain wiring.
Transformer: Electronic, 120VAC 50/60Hz input, 12V/50W max output.
Soft start feature extends lamp life by delaying the abrupt inrush current.
Utilizes 12V/50W max MR16 lamps (order separately).
Mounting: Two heavy gauge inner retention clips push out onto ceiling
or other mounting surface to firmly hold housing in place.
Accommodates surface up to.75" thick. 4 9/16" cutout hole.
Dimming: May be dimmed with electronic low voltage (ELV) dimmer.
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed, Suitable for damp locations.
WAC Lighting Trim HR-8401H NON-IC Remodel Housing
WAC Lighting HR-8401H NON-IC Remodel Housing on Amazon
4 Inch Premium Low Voltage Downlights HR-8401H Magnetic Non-IC, Remodel Housing
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available. 120V or 277V input, non-IC remodel housing with magnetic transformer.
For use with 4" trims.
Housings & Trims: HR-8401H HR-D411, HR-D412, HR-D413, HR-D416, HR-8411, HR-8412,
HR-D425, HR-D417, HR-D418, HR-D418-S, HR-8414, HR-8417
HR-8401HF HR-D411, HR-D412, HR-D413, HR-D416, HR-8411, HR-8412,
HR-D425, HR-D417, HR-D418, HR-D418-S, HR-8414, HR-8417
MR16, 50W
| HR-8401H | Recessed Low Voltage Remodel with Magnetic Transformer |
| HR-8401HF | Recessed Low Voltage Remodel with Magnetic Transformer |
• Cutout: 4 3/8"
• Integral magnetic transformer
• May be dimmed with magnetic low voltage (MLV) dimmer
• J-Box and transformer accessible through ceiling
• Proven core and coil technology
• Supplied thermal protector protects against over-lamping
• Suitable for 2 × 6 joist installations, for use in "shallow" applications
• 5 year WAC Lighting product warranty
Construction: Housing and transformer case is 20 gauge steel painted black.
Ceramic bi-pin socket, 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Three knockouts and four Romex® style wiring connectors provided for
ease of installation. Suitable for chain wiring.
Transformer: Magnetic, 120V/277VAC 50/60Hz input, 12V/50W max output.
Long-life transformer with proven core and coil technology.
Utilizes 12V/50W max MR16 lamps (order separately).
Mounting: Two heavy gauge inner retention clips push out onto ceiling
or other mounting surface to firmly hold housing in place.
Accommodates surface up to.75" thick. 4 3/8" cutout hole.
Dimming: May be dimmed with magnetic low voltage (MLV) dimmer.
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed, Suitable for damp locations.
WAC Lighting Trim HR-8402E NON-IC New Construction Housing
WAC Lighting HR-8402E NON-IC New Construction Housing on Amazon
4 Inch Premium Low Voltage Downlights HR-8402E Electronic Non-IC, New Construction Housing
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available. 120V input, non-IC new construction housing
with electronic transformer. For use with 4" trims.
Housings & Trims: HR-8402E HR-D411, HR-D412, HR-D413, HR-D416, HR-8411, HR-8412,
HR-D425, HR-D417, HR-D418, HR-D418-S HR-8414, HR-8417
MR16, 50W max
| HR-8402E | Recessed Low Voltage New Construction with Electronic Transformer |
• Cutout: 4 9/16"
• Integral electronic transformer
• May be dimmed with electronic low voltage (ELV) dimmer
• J-Box and transformer accessible through ceiling
• Advanced auto-reset, soft start and short circuit protection features
• Supplied thermal protector protects against over-lamping
• Suitable for 2 x 6 joist installations, for use in "shallow" applications
• 5 year WAC Lighting product warranty
Construction: Housing is 20 gauge steel, painted black.
Frame, junction box and hanger bars are heavy gauge galvanized steel.
Ceramic bi-pin socket, 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Seven knockouts and four Romex® style wiring connectors provided
for ease of installation. Rated for branch and chain wiring.
Transformer: Electronic, 120VAC 50/60Hz input, 12V/50W max output.
Soft start feature extends lamp life by delaying the abrupt inrush current.
Utilizes 12V/50W max MR16 lamps (order separately).
Mounting: Supplied with hanger bars, adjustable from 15"-24.5" to
accommodate various joist construction and grid sizes. Hanger bars have
nailers for wood joists as well as slots for easy mounting on "T" bars.
Accommodates surface up to.75" thick. 4 9/16" cutout hole.
Dimming: May be dimmed with an electronic low voltage (ELV) dimmer.
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed, Suitable for damp locations.
WAC Lighting Trim HR-8402H NON-IC New Construction Housing
WAC Lighting HR-8402H NON-IC New Construction Housing on Amazon
4 Inch Premium Low Voltage Downlights HR-8402H Magnetic Non-IC, New Construction Housing
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available. 120V or 277V input, non-IC new construction housing
with magnetic transformer. For use with 4" trims.
Housings & Trims: HR-8402H HR-D411, HR-D412, HR-D413, HR-D416, HR-8411, HR-8412,
HR-D425, HR-D417, HR-D418, HR-D418-S HR-8414, HR-8417
HR-8402HF HR-D411, HR-D412, HR-D413, HR-D416, HR-8411, HR-8412,
HR-D425, HR-D417, HR-D418, HR-D418-S HR-8414, HR-8417
MR16, 50W max
| HR-8402H | Recessed Low Voltage New Construction with Magnetic Transformer |
| HR-8402HF | Recessed Low Voltage New Construction with Magnetic Transformer |
• Cutout: 4 3/8"
• Integral magnetic transformer
• May be dimmed with magnetic low voltage (MLV) dimmer
• J-Box and transformer accessible through ceiling
• Proven core and coil technology
• Supplied thermal protector protects against over-lamping
• Suitable for 2 x 6 joist installations, for use in "shallow" applications
• 5 year WAC Lighting product warranty
Construction: Housing is 20 gauge steel, painted black.
Frame, junction box and hanger bars are heavy gauge galvanized steel.
Ceramic bi-pin socket, 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Seven knockouts and four Romex® style wiring connectors provided
for ease of installation. Rated for branch and chain wiring.
Transformer: Magnetic, 120V/277VAC 50/60Hz input, 12V/50W max output.
Long-life transformer with proven core and coil technology.
Utilizes 12V/50W max MR16 lamps (order separately).
Mounting: Supplied with hanger bars, adjustable from 15"-24.5" to
accommodate various joist construction and grid sizes. Hanger bars have
nailers for wood joists as well as slots for easy mounting on "T" bars.
Accommodates surface up to.75" thick. 4 3/8" cutout hole.
Dimming: May be dimmed with magnetic low voltage (MLV) dimmer.
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed, Suitable for damp locations.
WAC Lighting Trim HR-8402HL NON-IC New Construction Housing
WAC Lighting HR-8402H NON-IC New Construction Housing on Amazon
4 Inch Premium Low Voltage Downlights HR-8402HL Magnetic Non-IC New Construction Housing
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available.
Housings & Trims:
HR-8402HL HR-D411, HR-D412, HR-D413, HR-D416, HR-8411, HR-8412,
HR-D425, HR-D417, HR-8414, HR-8417
MR16, 75W max
| HR-8402HL | Recessed Low Voltage New Construction with Magnetic Transformer |
• Cutout: 4 3/8"
• Integral magnetic transformer
• May be dimmed with magnetic low voltage (MLV) dimmer
• J-Box and transformer accessible through ceiling
• Proven core and coil technology
• Supplied thermal protector protects against over-lamping
• Suitable for 2 x 8 joist installations, for use in "shallow" applications
• 5 year WAC Lighting product warranty
Construction: Housing is 20 gauge steel, painted black.
Frame, junction box and hanger bars are heavy gauge galvanized steel.
Ceramic bi-pin socket, 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Seven knockouts and four Romex® style wiring connectors provided
for ease of installation. Rated for branch and chain wiring.
Transformer: Magnetic, 120VAC 50/60Hz input, 12V/75W max output.
Long-life transformer with proven core and coil technology.
Utilizes 12V/75W max MR16 lamps (order separately).
Mounting: Supplied with hanger bars, adjustable from 15"-24.5" to
accommodate various joist construction and grid sizes. Hanger bars have
nailers for wood joists as well as slots for easy mounting on "T" bars.
Accommodates surface up to.75" thick. 4 3/8" cutout hole.
Dimming: May be dimmed with magnetic low voltage (MLV) dimmer.
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed, Suitable for damp locations.
WAC Lighting Trim HR-8403H IC New Construction Housing
WAC Lighting HR-8403H IC New Construction Housing on Amazon
4 Inch Premium Low Voltage Downlights HR-8403H Magnetic IC, Airtight Ready Housing, New Construction Housing
Designed and engineered for high performance in a compact fixture, 4- inch Low Voltage Recessed Downlights are styled with the elegance needed from the boardroom to the bedroom. Available for both IC and non-IC installations, a variety of decorative adjustable and wet location styles are available. 120V or 277V input, IC-rated, airtight ready new construction housing
with magnetic transformer. For use with 4" trims.
Trims HR-D411, HR-D412, HR-D413, HR-D416, HR-8411, HR-8412,
HR-D425, HR-D417, HR-D418, HR-D418-S HR-8414, HR-8417
MR16, 50W max
| HR-8403H | Recessed Low Voltage New Construction with Magnetic Transformer |
| HR-8403HF | Recessed Low Voltage New Construction with Magnetic Transformer |
• Cutout: 4 3/8"
• Integral magnetic transformer
• May be dimmed with magnetic low voltage (MLV) dimmer
• J-Box and transformer accessible through ceiling
• Proven core and coil technology
• Supplied thermal protector protects against over-lamping
• Suitable for 2 x 6 joist installations, for use in "shallow" applications
• 5 year WAC Lighting product warranty
Construction: Housing and junction box is 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
Ceramic bi-pin socket, 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Seven knockouts and four Romex® style wiring connectors provided
for ease of installation. Rated for branch and chain wiring.
Transformer: Magnetic, 120V/277VAC 50/60Hz input, 12V/50W max output.
Long-life transformer with proven core and coil technology.
Utilizes 12V/50W max MR16 lamps (order separately).
Mounting: Supplied with hanger bars, adjustable from 15"-24.5" to
accommodate various joist construction and grid sizes. Hanger bars have
nailers for wood joists as well as slots for easy mounting on "T" bars.
Accommodates surface up to.75" thick. 4 3/8" cutout hole.
Dimming: May be dimmed with magnetic low voltage (MLV) dimmer.
Rating: IC-Rated: Suitable for direct contact with insulation. Airtight, meets
Title 24 and WSEC airtight codes when used with RGK gasket kit (sold separately).
Standards: UL & CUL Listed, Suitable for damp locations.
WAC Lighting R-420 4" Recessed Downlight Step Baffle Trim
WAC Lighting R-420 4" Recessed Downlight Step Baffle Trim on Amazon
4 Inch Line Voltage Downlight R-420
Step Baffle
Recessed trim with interior step baffle. For use with R-400 series Line
voltage downlight housings.
Finish-Baffle/Trim: BN-Brushed Nickel/Brushed Nickel, CB-Copper Bronze/Copper Bronze, WT/WT-White/White
PAR20, 50W or
R20, 50W
| R-420-BN | 4" R400 Line Voltage Series Trim Step Baffle |
| R-420-CB | 4" R400 Line Voltage Series Trim Step Baffle |
| R-420-WT/WT | 4" R400 Line Voltage Series Trim Step Baffle |
• Durable stamped metal construction
• Retention clips hold trim firmly to housing
• Abrasion resistant powder coat paint or plated metal finish
• Handles surfaces up to.75"
• 5 year WAC Lighting product warranty
Construction: Durable stamped metal construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED PAR20 lamp or Medium base incandescent or
4-pin CFL lamps. Incandescent lamps are rated for up to 50W watts
max. Compact Fluorescent lamps are rated for 13 watts max. Lamps
are ordered separately.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Trim is available in Brushed Nickel (BN), Copper Bronze (CB)
or White (WT).
Standards: UL & CUL Listed. Suitable for damp locations.
WAC R-421-CB in Specular Clear with Copper Bronze trim

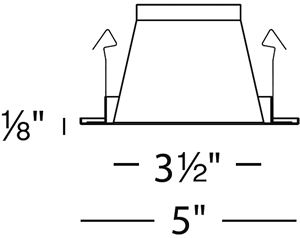

WAC Lighting R-421 4" Recessed Downlight Open Reflector Trim
WAC Lighting R-421 4" Recessed Downlight Open Reflector Trim on Amazon
4 Inch Line Voltage Downlight R-421
Open Reflector
Recessed trim with open reflector. For use with R-400 series Line voltage
downlight housings.
Finish-Reflector/Trim: CL/WT-Specular Clear/White or BN-Brushed Nickel/Brushed Nickel
PAR20, 50W
R20, 50W
| R-421-BN | 4" R400 Line Voltage Series Trim Open Reflector |
| R-421-CL/WT | 4" R400 Line Voltage Series Trim Open Reflector |
• Durable stamped metal construction
• Retention clips hold trim firmly to housing
• Abrasion resistant powder coat paint or plated metal finish
• Handles surfaces up to.75"
• 5 year WAC Lighting product warranty
Construction: Durable stamped metal construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED PAR20 lamp or Medium base incandescent or
4-pin CFL lamps. Incandescent lamps are rated for up to 50W watts
max. Compact Fluorescent lamps are rated for 13 watts max. Lamps
are ordered separately.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Reflector is Clear. Trim is available in Brushed Nickel (BN)
or White (WT).
Standards: UL & CUL Listed. Suitable for damp locations.
R-421-CL/WT in Specular Clear with White trim
WAC Lighting R-422 4" Recessed Downlight Shower Light Trim
WAC Lighting R-422 4" Recessed Downlight Shower Light Trim on Amazon
4 Inch Line Voltage Downlight R-422
Shower Light with Glass lens - UL Listed for wet locations
Wet location listed glass dome shower trim. Typical applications include
bathrooms, saunas, workrooms and patios.
For use with R-400 series Line voltage downlight housings.
Finish-Trim: WT-White
A19 40W
| R-422-WT | 4" R400 Line Voltage Series Trim Shower |
• Durable stamped metal construction
• Retention clips hold trim firmly to housing
• Abrasion resistant powder coat paint or plated metal finish
• Handles surfaces up to.75"
• 5 year WAC Lighting product warranty
Construction: Durable stamped metal construction. Tempered
frosted glass dome lens. Three heavy gauge retention clips firmly
hold trim to housing.
Utilizes LED PAR20 lamp or Medium base incandescent or
4-pin CFL lamps. Incandescent lamps are rated for up to 50W watts
max. Compact Fluorescent lamps are rated for 13 watts max. Lamps
are ordered separately.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Trim is available in Brushed Nickel (BN), Copper Bronze (CB)
or White (WT).
Standards: UL & CUL Listed. Suitable for wet locations.
WAC Lighting R-432 4" Recessed Downlight Gimbal Ring Trim
WAC Lighting R-432 4" Recessed Downlight Gimbal Ring Trim on Amazon
4 Inch Recessed Downlight - R-432
Gimbal Ring - 20° Adjustment From Vertical
Recessed trim gimbal ring - 20° adjustment from vertical.
For use with R-400 series Line voltage downlight housings.
Finish-Trim: BN-Brushed Nickel, CB-Copper Bronze, WT-White
PAR20, 50W
| R-432-BN | 4" R400 Line Voltage Series Trim Adjustable Gimbal Ring |
| R-432-CB | 4" R400 Line Voltage Series Trim Adjustable Gimbal Ring |
| R-432-WT | 4" R400 Line Voltage Series Trim Adjustable Gimbal Ring |
• Durable stamped metal construction
• Retention clips hold trim firmly to housing
• Abrasion resistant powder coat paint or plated metal finish
• Handles surfaces up to.75"
• 5 year WAC Lighting product warranty
Construction: Durable stamped metal construction.
Three heavy gauge retention clips firmly hold trim to housing.
Utilizes LED PAR20 lamp or Medium base incandescent or
4-pin CFL lamps. Incandescent lamps are rated for up to 50W watts
max. Compact Fluorescent lamps are rated for 13 watts max. Lamps
are ordered separately.
Finish: Abrasion resistant powder coat painted or plated metal
finish. Trim is available in Brushed Nickel (BN), Copper Bronze (CB)
or White (WT).
Standards: UL & CUL Listed. Suitable for damp locations.
WAC Lighting R-400S-N-A 4" Line Voltage Housings NIC New Construction Shallow
WAC Lighting R-400S-N-A 4" LNIC New Construction Shallow Housings on Amazon
4 Inch Line Voltage R-400S-N-A
Non-IC New Construction Shallow Airtight Ready Housing
Line voltage shallow new construction housing.
Trims: R-420, R-421, R-432, R-422
PAR20 50W, R20 50W
| R-400S-N-A | 4" R400 Line Voltage Series Housing New Construction Non-Ic |
• Cutout: 4 7/16"
• 3" clearance on all sides when insulation is present
• Thermal protector, includedprotects against over-lamping
• Certified airtight per ASTM E283, when used with RGK gasket kit
• Rated for branch and chain wiring
• UL and CUL Listed
• J-Box and transformer accessible through ceiling
Construction: Housing is 20 gauge steel, painted white. Frame, junction box
and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Non-metallic sheathed cable style
wiring connectors provided for ease of installation. Rated for branch and
chain wiring.
Mounting: Supplied with hanger bars, adjustable from 12"-24" to
accommodate various joist construction and grid sizes. Hanger
bars include a captive mounting "screw-nail" for ease of installation.
Accommodates surface thickness of up to.75".
Rating: Non-IC, Airtight Ready
Standards: UL & CUL Listed. Suitable for damp locations.
WAC Lighting R-401S-R-A 4" Line Voltage Housings NIC Remodel Shallow
WAC Lighting R-401S-R-A 4" Remodel Shallow Housings on Amazon
4 Inch Line Voltage R-401S-R-A
Non-IC Remodel Shallow Airtight Ready Housing
Line voltage shallow remodel housing.
Trims: R-R-420, R-421, R-432, R-422
PAR20 50W, R20 50W
| R-401S-R-A | 4" R400 Line Voltage Series Housing Remodel Non-Ic |
• Cutout: 4 7/16"
• 3" clearance on all sides when insulation is present
• Thermal protector, includedprotects against over-lamping
• Certified airtight per ASTM E283, when used with RGK gasket kit
• Rated for branch and chain wiring
• UL and CUL Listed
• J-Box and transformer accessible through ceiling
• Suitable for use in 2" x 6" joist installations
Construction: Housing is 20 gauge steel, painted white. Frame, junction box
and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Non-metallic sheathed cable style
wiring connectors provided for ease of installation. Rated for branch and
chain wiring.
Mounting: Clips allow easy removal of housing.
Accommodates surface thickness of up to.75".
Rating: Non-IC, Airtight Ready
Standards: UL & CUL Listed. Suitable for damp locations.
WAC Lighting R-402S-N-ICA 4" Line Voltage Housings IC New Construction
WAC Lighting R-402S-N-ICA New Construction Housings on Amazon
4 Inch Line Voltage R-402S-N-ICA
IC New Construction Airtight Ready Housing
Line voltage shallow new construction housing.
Trims: R-420, R-421, R-432, R-422
PAR20 50W, R20 50W
| R-402S-N-ICA | 4" R400 Line Voltage Series Housing New Construction Ic |
• Cutout: 4 7/16"
• Suitable for direct contact with insulation
• Thermal protector, includedprotects against over-lamping
• Certified airtight per ASTM E283, when used with RGK gasket kit
• Rated for branch and chain wiring
• Hanger bars slots are located on all four sides of the frame
• Suitable for use in 2" x 6" joist installations
Construction: Housing is 20 gauge steel, painted white. Frame, junction box
and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Non-metallic sheathed cable style
wiring connectors provided for ease of installation. Rated for branch and
chain wiring.
Mounting: Supplied with hanger bars, adjustable from 12"-24" to
accommodate various joist construction and grid sizes. Hanger
bars include a captive mounting "screw-nail" for ease of installation.
Accommodates surface thickness of up to.75".
Rating: IC rated, Airtight Ready
Standards: UL & CUL Listed. Suitable for damp locations.
design42 New Media Web Design
2192 Dartmouth Rd
Hendersonville NC 28791
