WAC Lighting 1 Inch LED Mini Recessed

Configurable housings and integral drivers make 2" LEDme™ Downlights an ideal recessed light.

• All-in-one unit, ready to install right out of box
• Cutout: 2.5", use standard hole saw
• Less than 1/16" thick, super low profile die-cast aluminum trim
• Smooth and continuous ELV dimming
• Sold as new construction, may be re-configured in the field for remodel
• Narrow flood beam spread
• 350° horizontal rotation in adjustable
• IC rated
• Integral driver configuration

Color Temp: 27 - 2700K
W - 3000K
35 - 3500K
C - 4500K

Lumens: 160Lm, 160Lm, 170Lm, 201Lm

Finish: BN-Brushed Nickel, WT-White or GM-Gun Metal

• Sold as new construction, may be re-configured in the field for remodel
• Narrow flood beam spread
• 350° horizontal rotation in adjustable
• IC rated
• Integral driver configuration

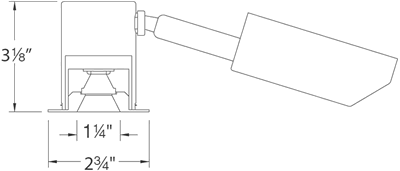

1" aperture
Cutout: 22"
20° adjustment from vertical; home docking position
to ensure light is projected straight down when needed
Less than 1/16" thick, super low profile die-cast aluminum trim
Sold as new construction, may be re-configured in the field for remodel
Narrow flood beam spread
100,000 hour rated life
UL and CUL Listed
5 year WAC Lighting product warranty

Color Temp: 27 - 2700K
W - 3000K
35 - 3500K
C - 4500K

Lumens: 160Lm, 160Lm, 170Lm, 201Lm

Finish: BN-Brushed Nickel, WT-White or GM-Gun Metal

Construction: Die-cast aluminum trim and aluminum heat sink.
Housing and junction box are 20 gauge steel painted black.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.
Driver: Electronic driver, 120VAC/60Hz input, 3.5W max output.
Power factor >0.9. Dimming with thermal protection.
Includes one 3.5W ANSI compliant Warm/Neutral LED for the finest color consistency possible. Replacement modules available.
Dimming: May be dimmed to 10% with electronic low voltage (ELV) dimmer.
Mounting: Supplied with hanger bars, adjustable from 15"-24.5" to accommodate various joist constructions and grid sizes.
Hanger bars include a captive mounting "screw-nail" for ease of installation.
For remodel installation, three heavy gauge inner retention clips push out onto ceiling or other mounting surface to firmly hold housing in place.
Accommodates surface up to 1" thick.
Minimum plenum height of 4" required. 22" cutout hole.

Finish: Available in White (WT) powder coat paint and electroplated Brushed Nickel (BN) and Gun Metal (GM).
Rating: IC-Rated: Suitable for direct contact with insulation.
Standards: UL & CUL Listed.

1" aperture
Cutout: 22"
Less than 1/16" thick, super low profile die-cast aluminum trim
Sold as new construction, may be re-configured in the field for remodel
Narrow flood beam spread
25° visual cut-off angle
100,000 hour rated life
UL and CUL Listed
5 year WAC Lighting product warranty

Color Temp: 27 - 2700K
W - 3000K
35 - 3500K
C - 4500K

Lumens: 160Lm, 160Lm, 170Lm, 201Lm

Finish: BN-Brushed Nickel, WT-White or GM-Gun Metal

Construction: Die-cast aluminum trim and aluminum heat sink.
Housing and junction box are 20 gauge steel painted black.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.
Driver: Electronic driver, 120VAC/60Hz input, 3.5W max output.
Power factor >0.9. Dimming with thermal protection.
Includes one 3.5W ANSI compliant Warm/Neutral LED for the finest color consistency possible. Replacement modules available.
Dimming: May be dimmed to 10% with electronic low voltage (ELV) dimmer.
Mounting: Supplied with hanger bars, adjustable from 15"-24.5" to accommodate various joist constructions and grid sizes.
Hanger bars include a captive mounting "screw-nail" for ease of installation.
For remodel installation, three heavy gauge inner retention clips push out onto ceiling or other mounting surface to firmly hold housing in place.
Accommodates surface up to 1" thick.
Minimum plenum height of 4" required. 22" cutout hole.

Finish: Available in White (WT) powder coat paint and electroplated Brushed Nickel (BN) and Gun Metal (GM).
Rating: IC-Rated: Suitable for direct contact with insulation.
Standards: UL & CUL Listed.

1" aperture
Cutout: 22"
20° adjustment from vertical; home docking position to ensure light is projected straight down when needed
Less than 1/16" thick, super low profile die-cast aluminum trim
Sold as new construction, may be re-configured in the field for remodel
Narrow flood beam spread
100,000 hour rated life
UL and CUL Listed
5 year WAC Lighting product warranty

Color Temp: 27 - 2700K
W - 3000K
35 - 3500K
C - 4500K

Lumens: 160Lm, 160Lm, 170Lm, 201Lm

Finish: BN-Brushed Nickel, WT-White or GM-Gun Metal

Construction: Die-cast aluminum trim and aluminum heat sink.
Housing and junction box are 20 gauge steel painted black.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.
Driver: Electronic driver, 120VAC/60Hz input, 3.5W max output.
Power factor >0.9. Dimming with thermal protection.
Includes one 3.5W ANSI compliant Warm/Neutral LED for the finest color consistency possible. Replacement modules available.
Dimming: May be dimmed to 10% with electronic low voltage (ELV) dimmer.
Mounting: Supplied with hanger bars, adjustable from 15"-24.5" to accommodate various joist constructions and grid sizes.
Hanger bars include a captive mounting "screw-nail" for ease of installation.
For remodel installation, three heavy gauge inner retention clips push out onto ceiling or other mounting surface to firmly hold housing in place.
Accommodates surface up to 1" thick.
Minimum plenum height of 4" required. 22" cutout hole.

Finish: Available in White (WT) powder coat paint and electroplated Brushed Nickel (BN) and Gun Metal (GM).
Rating: IC-Rated: Suitable for direct contact with insulation.
Standards: UL & CUL Listed.

Color Temp: 27 - 2700K, W - 3000K, 35 - 3500K, C - 4500K
Finish: BN-Brushed Nickel, GM-Gun Metal, WT-White

1" aperture
Cutout: 22"
Less than 1/16" thick, super low profile trim
Narrow flood beam spread
40° adjustment from vertical with home docking position to ensure light is projected straight down when needed
350° horizontal rotation
100,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum trim, aluminum heat sink and 20 gauge steel housing painted black.
Wiring: Socket and insulated wires are pre-installed within housing, wires lead out through the side of the housing for connection to remote driver.
Driver: Remote LEDme® electronic low voltage driver required (see below).
Dimming and non-dimming drivers available. Use a multiple terminal block to wire up to 3 fixtures for dimmable drivers (4 for non-dimmable in a neat under cabinet installation without the use of open splices (see below).
Includes one 3.5W ANSI compliant Warm/Neutral LED for the finest color consistency possible. Replacement modules available.
Dimming: May be dimmed to 10% with electronic low voltage (ELV) dimmer.
Mounting: Two heavy gauge inner retention clips push out onto mounting surface to firmly hold fixture in place. Accommodates surface up to w" thick.
22" cutout hole. Approved for use in ceilings with a Class 2 driver.

Finish: Available in White (WT) powder coat paint and electroplated Brushed Nickel (BN) and Gun Metal (GM).
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed.

Color Temp: 27 - 2700K, W - 3000K, 35 - 3500K, C - 4500K
Finish: BN-Brushed Nickel, GM-Gun Metal, WT-White

1" aperture
Cutout: 22"
Less than 1/16" thick, super low profile trim
Narrow flood beam spread
40° adjustment from vertical with home docking position to ensure light is projected straight down when needed
350° horizontal rotation
100,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum trim, aluminum heat sink and 20 gauge steel housing painted black.
Wiring: Socket and insulated wires are pre-installed within housing, wires lead out through the side of the housing for connection to remote driver.
Driver: Remote LEDme® electronic low voltage driver required.
Dimming and non-dimming drivers available. Use a multiple terminal block to wire up to 3 fixtures for dimmable drivers (4 for non-dimmable in a neat under cabinet installation without the use of open splices.
Includes one 3.5W ANSI compliant Warm/Neutral LED
for the finest color consistency possible. Replacement modules available.
Dimming: May be dimmed to 10% with electronic low voltage (ELV) dimmer.
Mounting: Two heavy gauge inner retention clips push out onto mounting
surface to firmly hold fixture in place. Accommodates surface up to w" thick.
2 3/8" cutout hole. Approved for use in ceilings with a Class 2 driver.

Finish: Available in White (WT) powder coat paint and electroplated
Brushed Nickel (BN) and Gun Metal (GM.
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed.

Color Temp: 27 - 2700K, W - 3000K, 35 - 3500K, C - 4500K
Finish: BN-Brushed Nickel, GM-Gun Metal, WT-White

1" aperture
Cutout: 22"
Less than 1/16" thick, super low profile trim
Narrow flood beam spread
25° visual cut-off angle
350° horizontal rotation
100,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum trim, aluminum heat sink and 20 gauge steel housing painted black.
Wiring: Socket and insulated wires are pre-installed within housing, wires lead out through the side of the housing for connection to remote driver.
Driver: Remote LEDme® electronic low voltage driver required.
Dimming and non-dimming drivers available. Use a multiple terminal block to wire up to 3 fixtures for dimmable drivers (4 for non-dimmable in a neat under cabinet installation without the use of open splices.
Includes one 3.5W ANSI compliant Warm/Neutral LED for the finest color consistency possible. Replacement modules available.
Dimming: May be dimmed to 10% with electronic low voltage (ELV) dimmer.
Mounting: Two heavy gauge inner retention clips push out onto mounting surface to firmly hold fixture in place. Accommodates surface up to w" thick.
22" cutout hole. Approved for use in ceilings with a Class 2 driver.

Finish: Available in White (WT) powder coat paint and electroplated Brushed Nickel (BN) and Gun Metal (GM).
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed.

• 50,000 hour rated life
• Narrow flood beam spread
• 25° cutoff angle for comfortable general and task lighting
• Power Consumption: 4W
• Lumens: 160Lm (2700K, 3000K), 201Lm (4000K)
• CRI: 85 (2700K, 3000K), 75 (4000K)

Finish BN-Brushed Nickel, GM - Gun Metal, WT-White
Color Temp: 27 - 2700K, W - 3000K, 35 - 3500K, C - 4000K

700mA Constant Current for LED's optimized and stable performance.
"Plug and Play" terminal blocks for wiring up to one LED lights.
Open circuit, short circuit, overload and overheat protection.
Input may used Electronic Lowvoltage dimmer to LED driver dimmable.( Example: LUTRON DVELV-300P)
5 year WAC Lighting product warranty

Input AC 60Hz
Input Current: LD-700MA03-EDIM -IS 0.04A max
Output Voltage: 2-5V DC
Output Current: 700mA DC constant current
Load: LD-700MA03-EDIM -IS 1PCS 1x3W LED Fixtures
Loading Wire: 22 AWG 6ft maximum length
