WAC QF-LED102 Charge Quick Connect Fixture

WAC Charge Spotlights on Amazon

Charge - LED102 LEDme® Quick Connect™ Fixture
The Charge is sharply sculpted with an intense, yet low heat projection, more transitional in shape, ideal for various applications in residences, hotels, restaurants and more.

• Power: 3W
• Lumens: Up to 109
• CBCP: Up to 1,525
• Color Temperature: 3000K
• CRI: 85
• Rated Life: 80,000 hours
• Smooth and continuous ELV dimming down to 15% or better depending on system power supply minimum loads
• Strong projected light output with no projected heat
• 360° horizontal rotation and 90° vertical adjustment
• Die-cast aluminum construction

Finish: BN-Brushed Nickel or DB - Dark Bronze, WT - White
LED: 3W*, 12V, 2900K color temp, 109 lumens
*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to existing 12V Systems

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

Compatible with all Quick Connect™ rail and track systems when using the proper adapter
Use on all Quick Connect™ Canopies
Available in spot, flood and wide angle beam spreads
360° horizontal rotation and 90° vertical aiming
Free of projected heat, UV and IR radiation
80,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum body.
Input: 12V AC/DC, built-in low voltage rectifier.
1 × 3W, 3000K warm white Cree LED.
Total power consumption varies depending on system.
Dimming: May be dimmed to 15% or better (depending on system power supply minimum loads) with electronic low voltage (ELV) dimmer.
For Solorail™ systems use magnetic transformer for dimming.

Finish: Available in Dark Bronze (DB) and White (WT) powder coat paint finishes and electroplated Brushed Nickel (BN) and Chrome (CH) finishes.
Standards: UL & CUL Listed.

WAC Lighting Charge 8010 Track Pack 3 Light Track Kit

WAC Lighting Charge Track Pack 3 Light Track Kit on Amazon

H-8010/3-30-BK Black
H-8010/3-30-WT White

Kit includes:

• 3 x Charge 8010 Track Heads
  H-8010-30-BK or H-8010-30-WT
• 4-foot Halo compatible track
  Aluminum extrusion with copper bus wire
  May be field cut and easily installed on a variety of surfaces
  End caps and mounting hardware included
  HT4-BK or HT4-WT
• Floating Canopy
  Connects to octagon box.
  Allows track to be powered anywhere along the length of the track
  HFC-BK or HFC-WT

Track Lighting & Track Kits >

WAC QF-LED103 Portal Quick Connect Fixture

WAC QF-LED103 Portal Quick Connect Fixtures on Amazon

Portal 103 LEDme® Quick Connect™ Fixture
With its disc-shaped silhouette, Portal offers strong projected light output and is adjustable for directional lighting, ideal for art and wall hangings in museums and luxury residences.

• Power: 4W
• Lumens: 100
• CBCP: 58
• Color Temperature: 3000K
• CRI: 85
• Rated Life: 80,000 hours
• Smooth and continuous ELV dimming down to 15% or better depending on system power supply minimum loads
• Strong projected light output with no projected heat
• 360° horizontal rotation and 90° vertical adjustment
• Die-cast aluminum construction

Finish: BN-Brushed Nickel or DB - Dark Bronze, WT - White
LED: 4W*, 12V, 3000K color temp, 100 lumens
*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to exiting 12V Systems

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

Compatible with all Quick Connect™ rail and track systems when using the proper adapter
Use on all Quick Connect™ Canopies
40° Beam angle
360° horizontal rotation and 90° vertical aiming
Free of projected heat, UV and IR radiation
80,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum body with glass diffuser lens.
Input: 12V AC/DC, built-in low voltage rectifier.
3 × 1W, 3000K warm white Cree LEDs.
Total power consumption varies depending on system.
Dimming: May be dimmed to 15% or better (depending on system power supply minimum loads) with electronic low voltage (ELV) dimmer.
For Solorail™ systems use magnetic transformer for dimming.

Finish: Available in Dark Bronze (DB) and White (WT) powder coat paint finishes and electroplated Brushed Nickel (BN) and Chrome (CH) finishes.
Standards: UL & CUL Listed.

WAC QF-190 Rolls Quick Connect Fixture

WAC QF-190 Rolls Quick Connect Fixtures on Amazon

Rolls 190 Low Voltage Quick Connect™ Fixtures
Experience the complete palette of designer glass shades and handsome metal shields with the Americana Quick Connect™ fixtures designed and engineered with miniature stylish profiles for a clean, architectural look.

Decorative shade options shown below.

• Accepts four glass and two metal style shields
• Additional extensions are available up to 48°
• 360° horizontal rotation and 90° vertical adjustment
• Machined brass construction

Finish: BN - Brushed Nickel or DB - Dark Bronze
12V LED MR16, Halogen 12V, 50W max MR16 (order separately)
12V/24V, 50W max, Xenon Bi-pin (order separately)
*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to existing 12V Systems

Additional extensions are available up to 48°
360° horizontal rotation and 90° vertical adjustment
Die-cast aluminum construction

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

Construction: Machined brass with metal spring band to retain shade.
Shades are either glass or metal.
Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max (order lamp separately).

Finish: Available in Dark Bronze (DB) powder coat paint finish and electroplated Brushed Nickel (BN).
Standards: UL & CUL Listed.

WAC Monopoint Canopy Adapter for Halo style track lights

WAC Monopoint for Halo style track lights on Amazon

Install any single Halo or Halo compatible track head or track adapted pendant without the track. Used to mount a single H system track fixture to an octagon box. When used with a low voltage track head the transformer box will protrude off of the face of the monopoint.

HMP H 5 3/8" 5 3/8" 3/8"

Finish: Black, White, Brushed Nickel, Dark Bronze

WAC Monopoint Canopy Adapter for Juno or Lightolier style track lights.

WAC Monopoint for Juno style track lights on Amazon
WAC Monopoint for Lightolier style track lights on Amazon

JMP J Series (Juno compatible) Monopoint Canopy

LMP L Series (Lightolier compatible) Monopoint Canopy

Install any single Juno or Juno compatible or Lightolier or Lightolier compatible track head or track adapted pendant without the track. Used to mount a single L or J system track fixture to an octagon box. When used with a low voltage track head the transformer, box will protrude off of the face of the monopoint.

JMP J.75" 4.75"
LMP L.75" 4 3/8"
Finish BK-Black, BN-Brushed Nickel, WT-White

WAC Lighting Tracks and Components

• 120 volt Track Track Compatible
  A Track Adapter allows any WAC Quick Connect Track Head to be used on Halo, Juno, Lightolier or other popular track lighting systems.

WAC Lighting Single-Circuit Tracks and Components >
WAC Lighting Two-Circuit Tracks and Components >

WAC Lighting Monorail Kits and Systems

• Low Voltage Monorail Compatible
  Suspend these track heads from Solorail Monorail using the correct adapter. Because the monorail is 12 volt, no transformer is required.
• Line Voltage Monorail Compatible
  A transformer adapter allows these 12 volt track heads to be used with WAC Flexrail1 120 volt Monorail.

WAC QF-LED-171 Orb Quick Connect Fixture

Orb - LED171 Quick Connect™ Fixtures
The uniquely designed Orb retains the same profile regardless of the aiming direction. Ideal for contemporary residential, and commercial spaces.

• Power: 7.5W
• Lumens: Up to 280
• CBCP: Up to 2,451
• Compare To: 35W MR16
• CRI: 85
• Dimming: Yes
• Rated Life: 30,000 hours
• Smooth and continuous ELV dimming down to 15% or better depending on system power supply minimum loads
• Replacement LED module may be ordered separately (RM3X3-30-QF)
• 360° horizontal rotation and 90° vertical adjustment
• Die-cast aluminum construction

Finish: BN - Brushed Nickel, DB - Dark Bronze
LED: 7.5W*, 12V, 3000K color temp, 280 lumens
*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to existing 12V systems

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

Smooth and continuous ELV dimming down to 15% or better
depending on system power supply minimum loads
Replacement LED module may be ordered separately
(model: RM3X3-30-QF)
360° horizontal rotation and 90° vertical aiming
Free of projected heat, UV and IR radiation
Replaceable Cree LED module
30,000 hour rated life
Available in three different Extension lengths
5 year WAC Lighting product warranty

Construction: Die-cast aluminum body with clear glass lens.
Input: 12V AC/DC, built-in low voltage rectifier.
3 × 3W, 3000K warm white Cree LEDs.
Total power consumption varies depending on system.
Dimming: May be dimmed to 15% or better (depending on system power supply minimum loads) with electronic low voltage (ELV) dimmer.
For Solorail™ systems use magnetic transformer for dimming.

Finish: Available in Dark Bronze (DB) powder coat paint finish and electroplated Brushed Nickel (BN) and Chrome (CH) finishes.
Standards: UL & CUL Listed.

WAC QF-LED-173 Forza Quick Connect Fixture

Forza - LED173 Quick Connect™ Fixtures
Forza, meaning strength or power, perfectly describes this sleek and sophisticated LED fixture. Ideal for contemporary residential, and commercial spaces.

• Power: 7.5W
• Lumens: Up to 280
• CBCP: Up to 2,451
• Compare To: 35W MR16
• CRI: 85
• Dimming: Yes
• Rated Life: 30,000 hours
• Smooth and continuous ELV dimming down to 15% or better depending on system power supply minimum loads
• Replacement LED module may be ordered separately (RM3X3-30-QF)
• 360° horizontal rotation and 90° vertical adjustment
• Die-cast aluminum construction

Finish: BN - Brushed Nickel
LED: 7.5W*, 12V 3000K color temp, 280 lumens
*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to existing 12V Systems

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

Smooth and continuous ELV dimming down to 15% or better depending on system power supply minimum loads
Replacement LED module may be ordered separately (model: RM3X3-30-QF)
360° horizontal rotation and 90° vertical aiming
Free of projected heat, UV and IR radiation
Replaceable Cree LED module
30,000 hour rated life
Available in three different Extension lengths
5 year WAC Lighting product warranty

Construction: Die-cast aluminum body with clear glass lens.
Input: 12V AC/DC, built-in low voltage rectifier.
3 × 3W, 3000K warm white Cree LEDs.
Total power consumption varies depending on system.
Dimming: May be dimmed to 15% or better (depending on system power supply minimum loads) with electronic low voltage (ELV) dimmer.
For Solorail™ systems use magnetic transformer for dimming.

Finish: Available in Dark Bronze (DB) powder coat paint finish and electroplated Brushed Nickel (BN) and Chrome (CH) finishes.
Standards: UL & CUL Listed.

WAC QF-LED101 Ovum Quick Connect Fixture

Ovum 101 LEDme® Quick Connect™ Fixtures
The sleek curved form of the Ovum is contemporary and slightly whimsical, ideal for various residential and architectural applications where creative design and functionality are of equal importance.

• Power: 3W
• Lumens: Up to 109
• CBCP: Up to 1,536
• Color Temperature: 3000K
• CRI: 85
• Rated Life: 80,000 hours
• Smooth and continuous ELV dimming down to 15% or better depending on system power supply minimum loads
• Strong projected light output with no projected heat
• 360° horizontal rotation and 90° vertical adjustment
• Die-cast aluminum construction

Finish: BN-Brushed Nickel or DB - Dark Bronze, WT - White
LED: 3W*, 12V, 2900K color temp, 109 lumens
*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to existing 12V Systems

Compatible with all Quick Connect™ rail and track systems when using the proper adapter
Use on all Quick Connect™ Canopies
Available in spot, flood and wide angle beam spreads
360° horizontal rotation and 90° vertical aiming
Free of projected heat, UV and IR radiation
80,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum body.
Input: 12V AC/DC, built-in low voltage rectifier.
1 × 3W, 3000K warm white Cree LED.
Total power consumption varies depending on system.
Dimming: May be dimmed to 15% or better (depending on system power supply minimum loads) with electronic low voltage (ELV) dimmer.
For Solorail™ systems use magnetic transformer for dimming.

Finish: Available in Dark Bronze (DB) and White (WT) powder coat paint finishes and electroplated Brushed Nickel (BN) and Chrome (CH) finishes.
Standards: UL & CUL Listed.

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

WAC QF-183 Super Ego Quick Connect Fixture

Super Ego 183 Low Voltage Quick Connect™ Fixtures
Low voltage track head with decorative metal shade for Quick Connect systems. Compatible systems include Solorail™, Flexrail1™, Monopoint and Multipoint, Standard Track, and Linear Track.

• Additional extensions are available up to 48°
• 360° horizontal rotation and 90° vertical adjustment
• Machined brass construction

Finish: BN-Brushed Nickel or DB - Dark Bronze
12V LED MR16, Halogen 12V, 50W max MR16 (order separately)

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

Additional extensions are available up to 48°
360° horizontal rotation and 90° vertical adjustment
Machined brass construction

Construction: All metal track head. Metal shade retained by three decorative screws.
Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max (order lamp separately).

Finish: Available in Dark Bronze (DB) powder coat paint finish and electroplated Brushed Nickel (BN).
Standards: UL & CUL Listed.

WAC QF-181 Mint Quick Connect Fixture

Mint 181 Low Voltage Quick Connect™ Fixtures
Low voltage track head with decorative shade options for Quick Connect systems. Compatible systems include Solorail™, Flexrail1™, Monopoint & Multipoint, Standard Track, and Linear Track.

Decorative shade options shown below.

• Accepts four glass and two metal style shields
• Additional extensions are available up to 48"
• 360° horizontal rotation and 90° vertical adjustment
• Machined brass construction

Finish: BN - Brushed Nickel, DB - Dark Bronze
12V LED MR16, Halogen 12V, 50W max MR16 (order separately)
12V/24V, 50W max, Xenon Bi-pin (order separately)
*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to existing 12V Systems

Additional extensions are available up to 48°
360° horizontal rotation and 90° vertical adjustment
Machined brass construction

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

Construction: Machined brass with metal spring band to retain shade.
Shades are either glass or metal.
Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max (order lamp separately).

Finish: Available in Dark Bronze (DB) powder coat paint finish and electroplated Brushed Nickel (BN).
Standards: UL & CUL Listed.

WAC QF-184 Kogel Quick Connect Fixture

Kogel 184 Low Voltage Quick Connect™ Fixtures
Low voltage track head with decorative shade options for Quick Connect systems. Compatible systems include Solorail™, Flexrail1™, Monopoint & Multipoint, Standard Track, and Linear Track.

Decorative shade options shown below.

• Accepts four glass and two metal style shields
• Additional extensions are available up to 48°
• 360° horizontal rotation and 90° vertical adjustment
• Machined brass construction

Finish: BN- Brushed Nickel, DB - Dark Bronze
12V LED MR16, Halogen 12V, 50W max MR16 (order separately)
12V/24V, 50W max, Xenon Bi-pin (order separately)
*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to existing 12V Systems

Additional extensions are available up to 48°
360° horizontal rotation and 90° vertical adjustment
Die-cast aluminum construction

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

Construction: Machined brass with metal spring band to retain shade.
Shades are either glass or metal.
Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max (order lamp separately).

Finish: Available in Dark Bronze (DB) powder coat paint finish and electroplated Brushed Nickel (BN).
Standards: UL & CUL Listed.

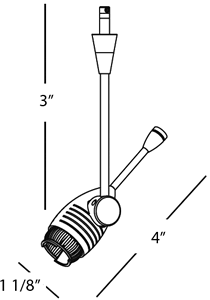

WAC QF-194 Ego Quick Connect Fixture

EGO 194 Low Voltage Quick Connect™ Fixtures
Experience the complete palette of designer glass shades and handsome metal shields with the Americana Quick Connect™ fixtures designed and engineered with miniature stylish profiles for a clean, architectural look.

Decorative shade options shown below.

• Accepts four glass and two metal style shields
• Additional extensions are available up to 48°
• 360° horizontal rotation and 90° vertical adjustment
• Machined brass construction

Finish: BN - Brushed Nickel or DB - Dark Bronze
12V LED MR16, Halogen 12V, 50W max MR16 (order separately)
12V/24V, 50W max, Xenon Bi-pin (order separately)
*Power consumption may vary depending on the efficiency of the power supply being used, LED may be retrofit to existing 12V Systems

Additional extensions are available up to 48°
360° horizontal rotation and 90° vertical adjustment
Die-cast aluminum construction

Canopy or Multiple Canopy choices >
Adapters for Track Lighting or Monorail shown at the bottom of this page >

Construction: Machined brass with metal spring band to retain shade.
Shades are either glass or metal.
Accepts 12V LED MR16, Halogen MR16 lamps up to 50W max (order lamp separately).

Finish: Available in Dark Bronze (DB) powder coat paint finish and electroplated Brushed Nickel (BN).
Standards: UL & CUL Listed.

WAC Glass Shade G111 (Retired)

Acid Etched Translucent Press Molded Bell

Finish AM-Amber, BL-Blue, WT-White
Length 1.75" wide 2.25"

WAC Glass Shade G112 (Retired)

Acid Etched Translucent Press Molded Grooved Cylinder

Finish AM-Amber, BL-Blue, WT-White
Length 1.75" wide 2.5"

WAC Glass Shade G113 (Retired)

Acid Etched Translucent Press Molded Ring

Finish AM-Amber, BL-Blue, WT-White
Length 1.875" wide 3 3/8"

WAC Solid Shield G116 (Retired)

Solid Bulb Shield.

Finish DB-Dark Bronze, CH-Chrome, PT-Platinum
Length 1.75" wide 2.25"
