WAC Lighting LED Multiple Recessed Lighting

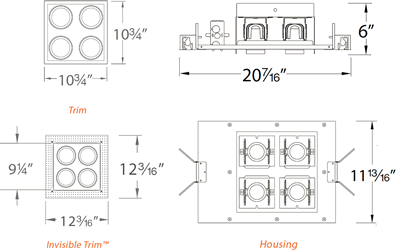

WAC MT-4LD116, MT-4LD216, MT-4LD316, MT-4LD416, MT-4LD226 LED Multiple Adjustable Spotlight Recessed Lighting

Precision Multiples - 4" LED Energy Star®
Retractable spot lights adjustable up to 90° from vertical

• Power: 16W/ light
• Lumens: Up to 1100/ light
• Compare To: 75W MR16
• CRI: Up to 90
• 0-10V Dimming: 120V and 277V
• Rated Life: 50,000 hours
• Input - 277V
• Energy Star® rated
• Meets 2013 California Title 24 Efficiency
• ETL & cETL listed
• Non-IC housings*
• Accepts one replacement lens

Finish Trim: WT - White
Housing: BK - Black
*Non-IC housings require 3" of clearance from insulation on all sides. .5" of sheetrock should be considered when planning for housing installation

Energy Star® rated
Non-IC rated housings*
Invisible Trim™ is designed to sit flush with the ceiling for a clean, architectural look
Spot and Flood beam spreads
90° vertical adjustment and 350° horizontal rotation
Accepts one replacement lens
50,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum heat sink painted black.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.
Driver: Universal (120V - 277V)
High output LED (included with housing)
Dimming: 0-10V dimmer. Dim from 100%-10%
Mounting: Supplied with hanger bars, adjustable from 142"-242" to accommodate various joist construction and grid sizes.
Hanger bars include a captive mounting "screw-nail" for ease of installation. Accommodates surface up to 1" thick.
198" × 58" cutout with trim, 198" × 58" cutout for Invisible Trim™. See instruction sheet for details on installation using spackle ring.

Finish: Abrasion resistant powder coat paint in Black (BK).
Standards: ETL & cETL listed.

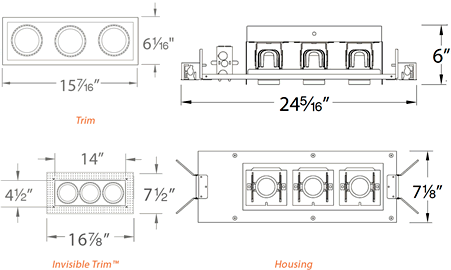

WAC MT-5LD125, MT-5LD225, MT-5LD325, MT-5LD425, MT-5LD445 LED Multiple Adjustable Spotlight Recessed Lighting

Tesla LED Multiple Spots Energy Star® High brightness, individually retractable & adjustable spot lights.

• Power: 22.5W/ light
• Lumens: Up to 1515/ light
• Compare To: 39W HID
• CRI: Up to 90 (85 Typical)
• Dimming: 0-10V dimming for 120V and 277V
• Rated Life: 50,000 hours
• Input - 277V
• Energy Star® rated
• Meets 2013 California Title 24 Efficiency
• ETL & cETL listed
• Accepts one lens and one accessory
• Non-IC Airtight Housings
• Individually Retractable Lights

Finish Trim: WT - White
Trim/Module: White/White
Rating: Non-IC Airtight

Energy Star® rated
Non-IC rated, airtight housings
Invisible Trim™ is designed to sit flush with the ceiling for a clean, architectural look
Spot and Flood beam spreads
45° vertical adjustment and 365° horizontal rotation
Accepts one replacement lens
50,000 hour rated life
5 year WAC Lighting product warranty

Construction: Die-cast aluminum heat sink painted white.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.
Driver: Universal Input (120V - 277V)
High output LED (included with housing)
Dimming: Dim to 10% with electronic low voltage (ELV) dimmer.
Mounting: Supplied with hanger bars, adjustable from 15"-242" to accommodate various joist construction and grid sizes.
Hanger bars include a captive mounting "screw-nail" for ease of installation. Accommodates surface up to 1" thick.
23c" × 68" cutout with trim, 25" × 7w" cutout for Invisible Trim™. See instruction sheet for details on installation using spackle ring.

Finish: Abrasion resistant powder coat paint in White (WT).
Standards: ETL & cETL listed.

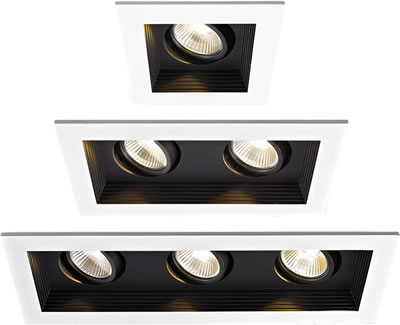

WAC MT-3LD111, MT-3LD211, MT-3LD311 Mini LED Multiple Spotlight Recessed Lighting

Mini LED Multiple Spots
Integral housing adjustable recessed spot lights

• Power: 11W/ light
• Lumens: Up to 755/ light
• Compare To: 50W MR16
• CRI: Up to 90 (Typical 85)
• Color Temp: 3000K
• Dimming: 100% - 10%
• Rated Life: 60,000 hours

Finish Trim/Reflector: WT White/White, BK White/Black
*Non-IC housings require 3" of clearance from insulation on all sides.
.5" of sheetrock should be considered when planning for housing installation

• One complete unit includes housing & trim
• ETL & cETL listed
• Meets 2013 California Title 24 Efficiency
• Individually adjustable lights
• All housings are Non-IC rated
• 30° visual cutoff for glare control

Meets 2013 California Title 24 Efficiency
Individually adjustable lights
Complete unit includes housing & trim
All housings are Non-IC rated
30° visual cutoff for glare control
25° vertical tilt. 350° horizontal rotation.

Construction: Die-cast aluminum heat sink painted black.
Trim, housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box (New Construction): Seven knockouts and four Romex®
style wiring connectors provided for ease of installation.
Rated for branch wiring.
Driver: 120V Input
High output LED (included with housing) Dimming: Dim to 10% with electronic low voltage (ELV) dimmer.
Mounting: Supplied with hanger bars, adjustable from 15"-242"
to accommodate various joist construction and grid sizes.
Hanger bars include a captive mounting "screw-nail" for ease of installation. Accommodates surface up to 1" thick.
12" × 48" cutout. See instruction sheet for details on installation using spackle ring.

Finish: Abrasion resistant powder coat paint in Black (BK).
Standards: ETL & cETL listed.
