Torsion Ceiling Fan from The Modern Fan Company

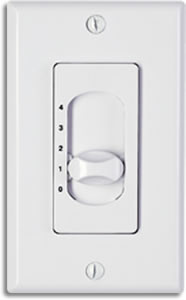

001 Fan Speed Only

• A basic fan control used to operate a single fan only, providing four speeds.
• Mounts into a wall switch box and includes a white, decora style switch plate.
• UL listed 120V/60Hz; 1.25 amp (fan); available in white only.

002 Fan Speed and Light Control

• Intended for operation of a fan with light.
• Requires two circuits (three wires).
• Provides four speeds and full range dimming.

002ND Fan Speed and Light Control without dimmer for Fluorescent Lights

• For fluorescent lights
• Intended for operation of a fan with light.
• Requires two circuits (three wires).
• Provides three speeds and on/off switching of light.

003 Handheld Remote

• For halogen or incandescent lamps
• Designed for independent operation of a fan and light using only one circuit (two wires).
• Provides three speeds and full range dimming.
• Comes with a wall hanging bracket.

003ND Handheld Remote without dimmer

• For fluorescent lamps
• Designed for independent operation of a fan and light using only one circuit (two wires).
• Provides three speeds and "on/off" switching.
• Comes with a wall hanging bracket.

004 Wall Mounted RF (Radio Frequency) Two Wire Fan Speed and Light Control

• For halogen or incandescent lamps
• Designed for independent operation of a fan and light using only one circuit (two wires).
• Provides three speeds and full range dimming.
• Wires into wall box.

004ND Wall Mounted RF (Radio Frequency) without dimmer Two Wire Fan Speed and Light Control

• For fluorescent lamps
• Designed for independent operation of a fan and light using only one circuit (two wires).
• Provides three speeds and "on/off" switching.
• Wires into wall box.

005 Wall Control with Remote Handset

• For halogen or incandescent lamps
• A combination control package
• Includes #004 Fan & Light Control and our #003 Remote Control handset.
• Provides three speeds and full range dimming.

005ND Wall Control with Remote Handset

• For fluorescent lamps
• A combination control package
• Includes #004ND Fan & Light Control and our #003ND Remote Control handset.
• Provides three speeds and full range dimming.

009A Two Fan Speed Control

• A three speed fan control designed to control two fans on a single circuit.
• Separate control of lights should be planned for if this control is to be used for fans with lights.

009B Multi-Fan Speed Control

• A three speed fan control designed to control three to five fans on a single circuit.
• Separate control of lights should be planned for if this control is to be used for fans with lights.

Ceiling fan manufacturers are required by federal law to publish the energy information for their products in a standardized format, including watts used, cubic feet of air moved per minute (CFM) and a resulting CFM per watt efficiency value. The test results are gathered in a controlled environment and are intended to help consumers and specifiers compare products. However, keep in mind that in a real world installation there are a number of additional factors that will affect air movement patterns and volume.

All Modern Fan products move air in the upper range of fans on the market. While emerging DC motor fans (like our DC Slim) are reaching new levels of efficiency, it's important to remember that all ceiling fans are inherently efficient and use very little electricity to begin with. Choosing Fluorescent lamps instead of incandescent (tungsten) or halogen equivalents represents the greatest opportunity for energy savings.

The test data to the left represents electricity useage of the motor only (independent of any lighting component). Assume 52" blade span unless indicated otherwise.
