Ceiling Fans >
Lapa Ceiling Fan
from The Modern Fan Company
Designed by Ron Rezek
Lapa Ceiling Fan from The Modern Fan Company on Amazon
The Modern Fan Company's continuing desire to add value along with design to the product line has led us to the distinctive Lapa fan. An optional hugger adapter for low-ceiling applications is available. The Lapa's optional light is housed in mouth-blown glass and uses LED. Lapa designed by Ron Rezek.
50" wide
Hangs 16" to 24" with included 4.5" and 12.5" down rods
Optional longer down rods available
Canopy
5.2" wide
Lapa blades are constructed of plywood and are available in a 50" blade span in six finishes and colors.
The Lapa is available with a 17 watt, medium base LED A-lamp (90 CRI, 3000K, 1600 lumens) behind an opal glass diffuser.
California: T24 JA8-2019 Compliant
The Lapa fan uses our AC motor control solutions for operation of a fan or a fan & light (with two-wire and three-wire options).
ETL Listed Damp Location

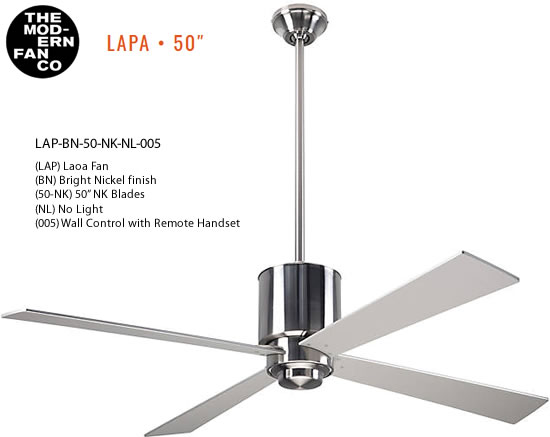

How to make a product number: LAP-BN-50-MP-NL-005
Lapa Ceiling Fan in (BN)
Bright Nickel finish, (50-MP) 50" Maple Blades,
(NL) No Light and (005) Wall Control with Remote Handset
LAP
Finish: BN
Bright Nickel
DB Dark Bronze
GV Galvanized
GW
Gloss White
Blade Span
50 50" Span
Blade Color
BK Black
WH White
SV Silver
NK Nickel
MP Maple
MG Mahogany
GY Greywash
WW
Whitewash
Light Option
NL No Light
552 LED
Control Option
001 Fan Speed Control Only
002 Three Wire Fan Speed and Light Control
003 Handheld Remote Control
004 Two Wire Fan Speed and Light Wall Control
005 Wall Control with Remote Handset
Lapa Flush Ceiling Fan
from The Modern Fan Company
Designed by Ron Rezek
Lapa Flush Ceiling Fan from The Modern Fan Company on Amazon
50" wide
Hangs 11.9"
Canopy
6" wide
Lapa Flush blades are constructed of plywood and are available in a 50" blade span in six finishes and colors.
The Lapa Flush is available with a 17 watt, medium base LED A-lamp (90 CRI, 3000K, 1600 lumens) behind an opal glass diffuser.
California: T24 JA8-2019 Compliant
The Lapa Flush fan uses our AC motor control solutions for operation of a fan or a fan & light (with two-wire and three-wire options).
ETL Listed Damp Location
How to make a product number: LAP-FM-BN-50-NK-NL-001
Lapa Flush Ceiling Fan in (BN)
Bright Nickel finish, (50-NK) 50" Nickel Blades,
(NL) No Light and (001) Fan Speed Control Only
LAP-FM
Finish: BN
Bright Nickel
DB Dark Bronze
GV Galvanized
GW
Gloss White
Blade Span
50 50" Span
Blade Color
BK Black
WH White
SV Silver
NK Nickel
MP Maple
MG Mahogany
GY Greywash
WW
Whitewash
Light Option
NL No Light
552 LED
Control Option
001 Fan Speed Control Only
002 Three Wire Fan Speed and Light Control
003 Handheld Remote Control
004 Two Wire Fan Speed and Light Wall Control
005 Wall Control with Remote Handset
Fan Controls
These Modern Fan Co. fans uses an AC motor control solution for operation of a fan or a fan & light (with two-wire and three-wire options).
To order fan controls with fans, incorporate into fan part numbers.
Additional controls are available.
001 Fan Speed Control Only
Basic fan controls a fan only, with no light.
Provides four speeds.
002 Three Wire Fan and Light Control
For operation of a fan with light.
Requires two circuits (three wires).
Provides four fan speeds and full range light dimming.
003 Handheld Remote Control
For operation of a fan or a fan with light.
Uses only one circuit (two wires).
Provides three fan speeds and light on/off and full range dimming.
Timer for scheduled shut down.
Includes handset, wall mounted holder and RF receiver.
004 Two Wire Fan Speed and Light Wall Control
For operation of a fan with light.
Uses only one circuit (two wires).
Provides three fan speeds and light on/off and full range dimming.
Includes wall switch, switch plate and RF receiver.
005 Wall Control with Remote Handset
A combination control package for a fan or a fan with light.
Includes the 003 Handheld Remote Control and wall mounted remote holder,
004 Two Wire Fan Speed and Light Wall Control, switch plate and RF receiver.
The Modern Fan Company's continuing desire to add value along with design to the product line has LED us to the distinctive Lapa fan. An optional hugger adapter for low-ceiling applications is available. The Lapa's optional light is housed in mouth-blown glass and uses either a PL26 watt compact Fluorescent lamp or a standard incandescent lamp. Lapa designed by Ron Rezek.
Watts: 71
CFM: 5837
CFM/Watt: 82
Ceiling fan manufacturers are required by federal law to publish the energy information for their products in a standardized format, including watts used, cubic feet of air moved per minute (CFM) and a resulting CFM per watt efficiency value. The test results are gathered in a controlled environment and are intended to help consumers and specifiers compare products. However, keep in mind that in a real world installation there are a number of additional factors that will affect air movement patterns and volume.
All Modern Fan products move air in the upper range of fans on the market. While emerging DC motor fans (like our DC Slim) are reaching new levels of efficiency, it's important to remember that all ceiling fans are inherently efficient and use very little electricity to begin with. Choosing Fluorescent lamps instead of incandescent (tungsten) or halogen equivalents represents the greatest opportunity for energy savings.
The test data to the left represents electricity useage of the motor only (independent of any lighting component). Assume 52" blade span unless indicated otherwise.
