WAC Lighting 3" Low Voltage & LED Recessed Downlighting (Retired)

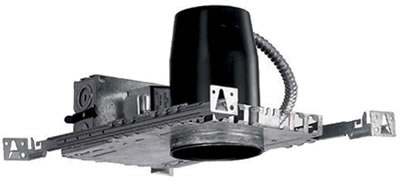

WAC Lighting HR-302M New Construction Non-IC Housing equipped with Magnetic Transformer

WAC Lighting HR-302M New Construction Non-IC Housing equipped with Magnetic Transformer on Amazon

3 Inch Magnetic Non-IC 302M New Construction Housing
Low voltage new construction downlight housing with integral magnetic transformer.

• Cutout: 3.875"
• Integral Magnetic Transformer
• Smooth and continous MLV dimming (Magnetic Low Voltage)
• 3" clearance on all sides when insulation is present
• J-Box and transformer accessible through ceiling
• Rated for branch and chain wiring
• UL and CUL Listed
• Suitable for damp locations
• Suitable for use in "shallow" joist installations

Trims: HR-D321,HR-D324,HR-D325,HR-D326,HR-D327,HR-D329 HR-D329-S,HR-D332,HR-D333,HR-D334

Cutout: 3d"
Integral Magnetic Transformer
Dimmable with magnetic low voltage dimmers
3" clearance on all sides when insulation is present
J-Box and transformer accessible through ceiling
Rated for branch and chain wiring
UL and CUL Listed
Suitable for damp locations
Suitable for use in "shallow" joist installations

Construction: Housing is 20 gauge steel, painted black. Frame, junction box and hanger bars are heavy gauge galvanized steel. Electrical component within can is a bi-pin ceramic socket with 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Seven ½" knockouts and four integral Romex connectors provided for ease of installation.
Transformer: Magnetic transformer for 12V MR16 lamps, 50W maximum. 120V input transformer.
Mounting: Supplied with hanger bars, adjustable from 142"-242" to accommodate various joist construction and grid sizes. Hanger bars have slots for easy mounting on "T" bars. Accommodates surface thickness of up to.75".
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed

WAC 3" LED Recessed Downlight HR-LED311 Open Reflector, Round

3" Open Reflector - Round LED311
Round recessed trim with interior open reflector.
For use with HR-LED309 series housings.

• Power: 5.5W (IC Rated), 8W (Non-IC)
• Delivered Lumens: Up to 375 (IC), 515 (Non-IC)
• Comparable: 35W x 50 watt MR16
• CRI: Up to 85
• Dimming: 100% - 10%
• Rated Life: 100,000 Hours
• Super low profile trim at less than .125" thick
• Deep regression of LEDs (2 3/8" from trim edge) produces a very low glare with 40° visual cutoff
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continuous ELV dimming
• Narrow flood beam spread
• 3" housing required (order separately)
  3" LEDme® New Construction HR-LED309-N
  3" LEDme® Remodel HR-LED309-R

Finish-Reflector/Trim: BK/BN-Black/Brushed Nickel, WT/WT-White/White
LED included with housing, order separately

Less than 8" thick, super low profile die-cast aluminum trim
Recessed depth from LEDs to trim edge is 2 3/8"
Narrow flood beam spread
100,000 hour rated life
Deep regression produces a very low glare with 40° cut-off angle
Handles surfaces up to.75" thick
5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips hold trim firmly to housing.
Utilizes three 3W LED's (included with housing).
See individual housing for wattage rating.

Finish: Powder coat paint or plated metal finish.
Available in Black baffle w/Brushed Nickel trim (BK/BN) and White baffle w/White trim (WT/WT).
Standards: UL & CUL Listed.

WAC 3" LED Recessed Downlight HR-LED321 Round, Reflector

3" Step Baffle - Round LED321
Round recessed trim with interior step baffle. For use with HR-LED309 series housings.

• Power: 5.5W (IC Rated), 8W (Non-IC)
• Delivered Lumens: Up to 375 (IC), 515 (Non-IC)
• Comparable: 35W x 50 watt MR16
• CRI: Up to 85
• Dimming: 100% - 10%
• Rated Life: 100,000 Hours
• Super low profile trim at less than .125" thick
• Deep regression of LEDs (2 3/8" from trim edge) produces a very low glare with 40° visual cutoff
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continuous ELV dimming
• Narrow flood beam spread
• 3" housing required (order separately)

Finish-Reflector/Trim: BK/BN-Black/Brushed Nickel, WT/WT-White/White
LED included with housing, order separately

Less than 8" thick, super low profile die-cast aluminum trim
Recessed depth from LEDs to trim edge is 2 3/8"
Narrow flood beam spread
100,000 hour rated life
Deep regression produces a very low glare with 40° cut-off angle
Handles surfaces up to.75" thick
5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips hold trim firmly to housing.
Utilizes three 3W LED's (included with housing).
See individual housing for wattage rating.

Finish: Powder coat paint or plated metal finish.
Available in Black baffle w/Brushed Nickel trim (BK/BN) and White baffle w/White trim (WT/WT).
Standards: UL & CUL Listed.

WAC LEDme Recessed Downlight HR-LED331 Round, Baffle
Round Shower Light

3" Shower Light - Round Trim - UL Listed For Wet Location
LED331
Round recessed shower trim with interior woven lens.
For use with HR-LED309 series housings.

• Power: 5.5W (IC Rated), 8W (Non-IC)
• Delivered Lumens: Up to 375 (IC), 515 (Non-IC)
• Comparable: 35W x 50 watt MR16
• CRI: Up to 85
• Dimming: 100% - 10%
• Rated Life: 100,000 Hours
• Super low profile trim at less than .125" thick
• Deep regression of LEDs (2 3/8" from trim edge) produces a very low glare with 40° visual cutoff
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continuous ELV dimming
• Narrow flood beam spread
• 3" housing required (order separately)
• Shower light is UL and CUL listed for wet locations

Finish-Trim: CH-Chrome, WT-White
LED included with housing, order separately

Less than .125" thick, super low profile die-cast aluminum trim
Recessed depth from LEDs to trim edge is 2 3/8"
Narrow flood beam spread
100,000 hour rated life
Deep regression produces a very low glare with 40° cut-off angle
Handles surfaces up to.75" thick
5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips hold trim firmly to housing.
Utilizes three 3W LED's (included with housing).
See individual housing for wattage rating.

Finish: Powder coat paint or plated metal finish.
Available in Black baffle w/Brushed Nickel trim (BK/BN) and White baffle w/White trim (WT/WT).
Standards: UL & CUL Listed.

WAC LEDme Recessed Downlight HR-LED351 Square, Reflector

3" Open Reflector - Square LED351
Square recessed trim with interior open reflector.
For use with HR-LED309 series housings.

• Power: 5.5W (IC Rated), 8W (Non-IC)
• Delivered Lumens: Up to 375 (IC), 515 (Non-IC)
• Comparable: 35W x 50 watt MR16
• CRI: Up to 85
• Dimming: 100% - 10%
• Rated Life: 100,000 Hours
• Super low profile trim at less than .125" thick
• Deep regression of LEDs (2 3/8" from trim edge) produces a very low glare with 40° visual cutoff
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continuous ELV dimming
• Narrow flood beam spread
• 3" housing required (order separately)

Finish-Reflector/Trim: BK/BN-Black/Brushed Nickel, WT/WT-White/White
LED included with housing, order separately

Less than .125" thick, super low profile die-cast aluminum trim
Recessed depth from LEDs to trim edge is 2 3/8"
Narrow flood beam spread
100,000 hour rated life
Deep regression produces a very low glare with 40° cut-off angle
Handles surfaces up to.75" thick
5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction.
Three heavy gauge retention clips hold trim firmly to housing.
Utilizes three 3W LED's (included with housing).
See individual housing for wattage rating.

Finish: Powder coat paint or plated metal finish.
Available in Black baffle w/Brushed Nickel trim (BK/BN) and White baffle w/White trim (WT/WT).
Standards: UL & CUL Listed.

WAC LEDme Shower Light HR-LED371 Square
Square Shower Light

3" Shower Light - Square Trim - UL Listed for Wet Location
LED371
Square recessed shower trim with interior woven lens.
For use with HR-LED309 series housings.

• Power: 5.5W (IC Rated), 8W (Non-IC)
• Delivered Lumens: Up to 375 (IC), 515 (Non-IC)
• Comparable: 35W x 50 watt MR16
• CRI: Up to 85
• Dimming: 100% - 10%
• Rated Life: 100,000 Hours
• Super low profile trim at less than .125" thick
• Deep regression of LEDs (2 3/8" from trim edge) produces a very low glare with 40° visual cutoff
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continuous ELV dimming
• Narrow flood beam spread
• 3" housing required (order separately)
• Shower light is UL and CUL listed for wet locations

Finish-Trim: CH-Chrome, WT-White
LED included with housing, order separately

Less than .125" thick, super low profile die-cast aluminum trim
Recessed depth from LEDs to trim edge is 2 3/8"
Narrow flood beam spread
100,000 hour rated life
Deep regression produces a very low glare with 40° cut-off angle
Handles surfaces up to.75" thick
5 year WAC Lighting product warranty

Construction: Durable die-cast aluminum construction.
Two heavy gauge E-clips hold trim firmly to housing.
Utilizes three 3W LED's (included with housing).
See individual housing for wattage rating.

Finish: Powder coat paint or plated metal finish.
Available in Chrome (CH) and White (WT).
Standards: UL Listed for wet locations.

WAC LEDme 3" Remodel Housing

WAC LEDme 3" Remodel Housing
3 inch LEDme® IC-Rated remodel housing, includes three 3W LED's.
For use with LEDme® 3 inch trims.

• Cutout: 3.875"
• IC-Rated: Suitable for direct contact with insulation
• Non-IC: 3" clearance on all sides when insulation is present
• Full scale dimming from 100% to 10%
• Smooth and continuous dimming with Electronic Low Voltage (ELV) dimmer
• Potential life of up to 100,000 hours
• Provided push-in wire connector for easy installation
• Rated for branch wiring
• Accommodates ceiling thickness of up to 1"
• UL and CUL Listed

Cutout: 3d"
100,000 hour rated life
Accommodates ceiling thickness up to 1"
UL and CUL Listed
5 year WAC Lighting product warranty

Construction: Die-cast aluminum heat sink painted black.
Housing and junction box are 20 gauge steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.
Driver: Electronic driver, 120VAC/60Hz input, 5.8W output, 450mA current.
Power factor >0.9. Dimming with thermal protection.
Includes three 3W ANSI compliant Warm/Neutral LEDs for the finest color consistency possible. Replacement modules available.
Dimming: Dimmed to 10% with electronic low voltage (ELV) dimmer.
Mounting: Three heavy gauge inner retention clips push out onto ceiling or other mounting surface to firmly hold housing in place.
Accommodates surface up to 1" thick. 3d" cutout hole.
Rating: IC-Rated: Suitable for direct contact with insulation.
Standards: UL & CUL Listed.

WAC LEDme 3" New Construction Housing

3" LEDme® New Construction Housing
3 inch LEDme® IC-Rated new construction housing,
includes three 3W LED's. For use with LEDme® 3 inch trims.

• Cutout: 3.875"
• IC-Rated: Suitable for direct contact with insulation
• Non-IC: 3" clearance on all sides when insulation is present
• Full scale dimming from 100% to 10%
• Smooth and continuous dimming with Electronic Low Voltage (ELV) dimmer
• Potential life of up to 100,000 hours
• Provided push-in wire connector for easy installation
• Rated for branch wiring
• Accommodates ceiling thickness of up to 1"
• UL and CUL Listed

Cutout: 3d"
100,000 hour rated life
Accommodates ceiling thickness up to 1"
UL and CUL Listed
5 year WAC Lighting product warranty

Construction: Die-cast aluminum heat sink painted black.
Housing and junction box are 20 gauge steel.
Frame and hanger bars are heavy gauge galvanized steel.
J-Box: Seven knockouts and four Romex® style wiring connectors provided for ease of installation. Rated for branch wiring.
Driver: Electronic driver, 120VAC/60Hz input, 5.8W output, 450mA current.
Power factor >0.9. Dimming with thermal protection.
Includes three 3W ANSI compliant Warm/Neutral LEDs for the finest color consistency possible. Replacement modules available.
Dimming: Dimmed to 10% with electronic low voltage (ELV) dimmer.
Mounting: Supplied with hanger bars, adjustable from 142"-242" to accommodate various joist construction and grid sizes. Hanger bars include a captive mounting "screw-nail" for ease of installation.
Accommodates surface up to 1" thick. 3d" cutout hole.
Rating: IC-Rated: Suitable for direct contact with insulation.
Standards: UL & CUL Listed.

WAC Lighting HR-D321 Open Specular 3" Trim

3" Premium Low Voltage Downlight - HR-D321
Open Reflector Trim - 25° Adjustment From Vertical
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Open specular trim with anodized aluminum reflector to provide optimal lamp performance. For use with HR-300 series low voltage downlight housings. Center lamp holder allows the lamp to be tilted to 25° from nadir.

• Accomodates most LED MR16 or Halogen MR16 lamps
• Die-cast aluminum construction
• Steel spring clips secure trim to housing
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continous ELV or MLV dimming depending on transformer
• Various lamp options available including LED
• Clear lens included, replacement lens options available

Finish-Reflector/Trim: SC/BN-Specular Clear/Brushed Nickel or SC/WT-Specular Clear/White
MR16, 50W max (LED or Halogen)

Open reflector, 25° adjustment from vertical
Die-cast aluminum construction with heavy gauge retention clips secure lens firmly to lamp
Abrasion resistant powder coat paint or plated metal finish
Variety of decorative and performance trim options
Clear lens included
UL & CUL Listed

Construction: Powder coated or plated brushed nickel finish on die-cast aluminum. Inner die-cast aluminum trim body has three heavy gauge retention clips to firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps, 50W max.
Ordered separately.
Standards: UL & CUL Listed.
Housings: Non-IC housings require 3" of clearance from insulation on all sides. Accommodates ceiling thickness of up to.75" for remodel &.75" for new construction.

WAC Lighting HR-D324 Basic Baffle

3" Premium Low Voltage Downlight HR-D324
Basic Baffle Trim - 25° Adjustment From Vertical
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Open baffle trim used to prevent high and low angle aperture glare. For use with HR-300 series low voltage downlight housings. Center lamp holder allows the lamp to be tilted to 25° from nadir.

• Accomodates most LED MR16 or Halogen MR16 lamps
• Die-cast aluminum construction
• Steel spring clips secure trim to housing
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continous ELV or MLV dimming depending on transformer
• Various lamp options available including LED
• Clear lens included, replacement lens options available

Finish-Baffle/Trim: WT/WT-White/White
MR16, 50W max (LED or Halogen)

Basic baffle, 25° adjustment from vertical
Die-cast aluminum construction with heavy gauge retention clips secure lens firmly to lamp
Abrasion resistant powder coat paint or plated metal finish
Variety of decorative and performance trim options
Clear lens included
UL & CUL Listed. Suitable for damp locations.

Construction: Powder coated or plated brushed nickel finish on die-cast aluminum. Inner die-cast aluminum trim body has three heavy gauge retention clips to firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps, 50W max.
Ordered separately.
Standards: UL & CUL Listed.
Housings: Non-IC housings require 3" of clearance from insulation on all sides. Accommodates ceiling thickness of up to.75" for remodel &.75" for new construction.

WAC Lighting HR-D325 Pinhole Trim

3 Inch Premium Low Voltage HR-D325
Pin Hole Trim
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Pinhole trim with baffle style opening used for providing precise light distribution that gives drama and stature to a space. For use with HR-300 series low voltage downlight housings.

• Accomodates most LED MR16 or Halogen MR16 lamps
• Die-cast aluminum construction
• Steel spring clips secure trim to housing
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continous ELV or MLV dimming depending on transformer
• Various lamp options available including LED
• Clear lens included, replacement lens options available

Finish-Baffle/Trim: BK/WT-Black/White, WT/WT-White/White
MR16, 35W max (LED or Halogen)

Basic baffle, 25° adjustment from vertical
Die-cast aluminum construction with heavy gauge retention clips secure lens firmly to lamp
Abrasion resistant powder coat paint or plated metal finish
Variety of decorative and performance trim options
Clear lens included
UL & CUL Listed. Suitable for damp locations.

Construction: Powder coated finish on die-cast aluminum. Inner die-cast aluminum trim body has three heavy gauge retention clips to firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps, 35W max.
Ordered separately.
Standards: UL & CUL Listed.
Housings: Non-IC housings require 3" of clearance from insulation on all sides. Accommodates ceiling thickness of up to.75" for remodel &.75" for new construction.

WAC Lighting HR-D327 Gimbal Ring 3" Trim

3 Inch Premium Low Voltage HR-D327 Adjustable Gimbal Ring Trim- 25° Adjustment From Vertical
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Adjustable open gimbal ring trim for use with HR-300 series low voltage downlight housings.

• Accomodates most LED MR16 or Halogen MR16 lamps
• Die-cast aluminum construction
• Steel spring clips secure trim to housing
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continous ELV or MLV dimming depending on transformer
• Various lamp options available including LED
• Clear lens included, replacement lens options available

Finish: BN-Brushed Nickel, WT-White
MR16, 50W max (LED or Halogen)

Adjustable gimbal ring, 25° adjustment from vertical
Die-cast aluminum construction with heavy gauge retention clips secure lens firmly to lamp
Abrasion resistant powder coat paint or plated metal finish
Variety of decorative and performance trim options
Clear lens included
UL & CUL Listed. Suitable for damp locations.

Construction: Powder coated finish on die-cast aluminum. Inner die-cast aluminum trim body has three heavy gauge retention clips to firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps, 50W max.
Ordered separately.
Standards: UL & CUL Listed.
Housings: Non-IC housings require 3" of clearance from insulation on all sides. Accommodates ceiling thickness of up to w" for remodel & w" for new construction.

WAC Lighting HR-D329-S Flat Glass 3" Trim

3 Inch Premium Low Voltage D329-S Shower Light Clear Flat Lens, 25° Adjustment From Vertical
UL Listed For Wet Locations
Constructed of die cast aluminum or one piece spun aluminum for high quality and durability, Premium Low and Line Voltage Downlights feature a broad range of decorative and performance trims in abrasion resistant powder coat or plated metal designer finishes, for secured lamp positioning, low glare and superior performance photometrics in challenging residential and commercial projects. Enclosed drop glass lens trim for use with HR-300 series low voltage downlight housings. Wet location listed for use in showers and similar environments.

• Accomodates most LED MR16 or Halogen MR16 lamps
• Die-cast aluminum construction
• Steel spring clips secure trim to housing
• Abrasion resistant powder coat paint or plated metal finish
• Smooth and continous ELV or MLV dimming depending on transformer
• Various lamp options available including LED
• Clear lens included, replacement lens options available
• Shower light is wet location listed

Finish: WT-White
MR16, 35W max (LED or Halogen)

Adjustable gimbal ring, 25° adjustment from vertical
Die-cast aluminum construction with heavy gauge retention clips secure lens firmly to lamp
Abrasion resistant powder coat paint or plated metal finish
Variety of decorative and performance trim options
Clear lens included
UL & CUL Listed. Suitable for damp locations.

Construction: Powder coated or plated brushed nickel finish on die-cast aluminum. Fingered retention clips firmly hold trim to housing.
Utilizes LED or Halogen 12V MR16 lamps, 35W max.
Ordered separately.
Standards: UL & CUL Listed.
Housings: Non-IC housings require 3" of clearance from insulation on all sides. Accommodates ceiling thickness of up to.75" for remodel &.75" for new construction.

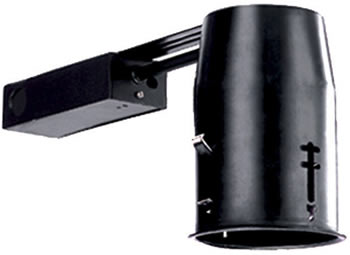

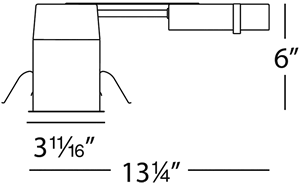

WAC Lighting HR-301E Remodel Non-IC Housing equipped with Electronic Transformer

Electronic Non-IC Remodel Housing
Low voltage new construction downlight housing with integral electronic transformer.

• Integral Electronic Transformer (1W minimum load)
• Smooth and continous ELV dimming (Electronic Low Voltage)
• 3" clearance on all sides when insulation is present
• J-Box and transformer accessible through ceiling
• Suitable for chain wiring
• Suitable for damp locations
• Suitable for use in "shallow" joist installations

Trims: HR-D321,HR-D324,HR-D325,HR-D326,HR-D327,HR-D329 HR-D329-s,HR-D332,HR-D333,HR-D334

Cutout: 3d"
Integral Electronic Transformer
Dimmable with electronic low voltage dimmers
3" clearance on all sides when insulation is present
J-Box and transformer accessible through ceiling
Rated for branch and chain wiring
UL and CUL Listed
Suitable for damp locations
Suitable for use in "shallow" joist installations

Construction: Housing is 20 gauge steel, painted black. Frame, junction box and hanger bars are heavy gauge galvanized steel. Electrical component within can is a bi-pin ceramic socket with 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Three ½" knockouts provided for wire entry and exit.
Transformer: Electronic transformer for 12V MR16 lamps, 50W maximum. 120V input transformer, 1W minimum load.
Mounting: Three heavy gauge inner retention clips push out on to ceiling or other mounting surface to firmly hold housing in place.
Accommodates surface thickness of up to ¾".
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed

WAC Lighting HR-301M Remodel Non-IC Housing equipped with Magnetic Transformer

3 Inch Magnetic Non-IC 301M Remodel Housing
Low voltage new construction downlight housing with integral magnetic transformer.

• Cutout: 3.875"
• Integral Magnetic Transformer
• Smooth and continous MLV dimming (Magnetic Low Voltage)
• 3" clearance on all sides when insulation is present
• J-Box and transformer accessible through ceiling
• Suitable for chain wiring
• UL and CUL Listed
• Suitable for damp locations
• Suitable for use in "shallow" joist installations

Trims: HR-D321,HR-D324,HR-D325,HR-D326,HR-D327, HR-D329,HR-D329-S,HR-D332,HR-D333,HR-D334

Cutout: 3d"
Integral Magnetic Transformer
Dimmable with magnetic low voltage dimmers
3" clearance on all sides when insulation is present
J-Box and transformer accessible through ceiling
Rated for branch and chain wiring
UL and CUL Listed
Suitable for damp locations
Suitable for use in "shallow" joist installations

Construction: Housing is 20 gauge steel, painted black. Frame, junction box and hanger bars are heavy gauge galvanized steel. Electrical component within can is a bi-pin ceramic socket with 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Three ½" knockouts provided for wire entry and exit.
Transformer: Magnetic transformer for 12V MR16 lamps, 50W maximum. 120V input transformer.
Mounting: Three heavy gauge inner retention clips push out on to ceiling or other mounting surface to firmly hold housing in place.
Accommodates surface thickness of up to.75".
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed

WAC Lighting HR-302E New Construction Non-IC Housing equipped with Electronic Transformer

3 Inch Electronic Non-IC 302E New Construction Housing
Low voltage new construction downlight housing with integral electronic transformer.

• Cutout: 3.875"
• Integral Electronic Transformer (1W minimum load)
• Smooth and continous ELV dimming (Electronic Low Voltage)
• 3" clearance on all sides when insulation is present
• J-Box and transformer accessible through ceiling
• Rated for branch and chain wiring
• UL and CUL Listed
• Suitable for damp locations
• Suitable for use in "shallow" joist installations

Trims: HR-D321,HR-D324,HR-D325,HR-D326,HR-D327,HR-D329 HR-D329-S,HR-D332,HR-D333,HR-D334

Cutout: 3d"
Integral Electronic Transformer
Dimmable with electronic low voltage dimmers
3" clearance on all sides when insulation is present
J-Box and transformer accessible through ceiling
Rated for branch and chain wiring
UL and CUL Listed
Suitable for damp locations
Suitable for use in "shallow" joist installations

Construction: Housing is 20 gauge steel, painted black. Frame, junction box and hanger bars are heavy gauge galvanized steel. Electrical component within can is a bi-pin ceramic socket with 18 gauge teflon insulated wires with fiberglass sleeves.
J-Box: Seven ½" knockouts and four integral Romex connectors provided for ease of installation.
Transformer: Electronic transformer for 12V MR16 lamps, 50W maximum. 120V input transformer, 1W minimum load.
Mounting: Supplied with hanger bars, adjustable from 142"-242" to accommodate various joist construction and grid sizes. Hanger bars have slots for easy mounting on "T" bars. Accommodates surface thickness of up to.75".
Rating: Non-IC: insulation must be kept at least 3" away from the housing.
Standards: UL & CUL Listed
